Product Overview

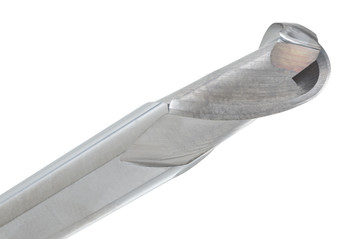

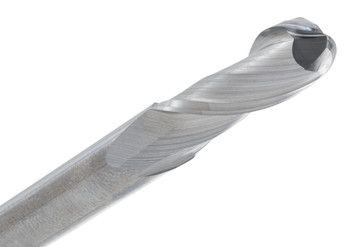

The CGS Tool 222-2188 is a 7/32" diameter 2-flute solid carbide ball end mill built specifically for compact profile and contour milling, where the radius needs to fit into a smaller pocket cleanly. It belongs to the 222 Series, CGS Tool's standard ball nose line.
What sets this tool apart is the .1094" radius, well matched to compact blending and curved detail work, running on a 30° helix in a single-end build. Left uncoated, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 7/32"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1094"
- Series: CGS 222 Series
- Part No: 222-2188
Key Performance Features:
- 2-flute ball end design for compact contour milling
- .1094" radius supports smooth rounded feature work
- 30° helix helps maintain controlled chip movement
- Handles finishing, blending, and curved pocket machining
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
