Product Overview

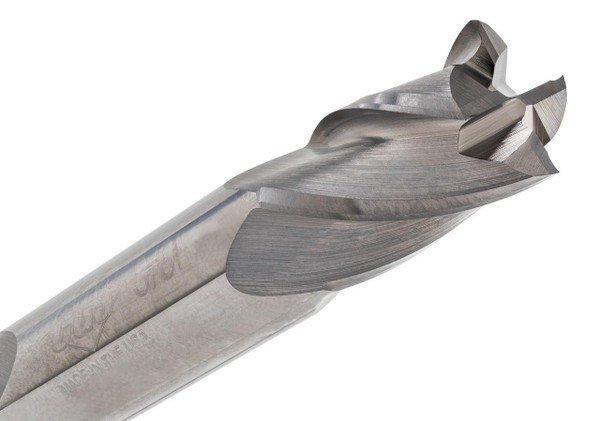

The CGS Tool 440-2188 is a 7/32" diameter 4-flute solid carbide square end mill from the 440 Series, sized for shops that need tighter slots and smaller walls without dropping into micro-tool territory. It sits in that useful middle ground between a standard-size cutter and a true precision micro tool.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a double-end design that stretches its usable life. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a dependable choice for controlled, smaller-scale work.
Tool Specifications:
- Diameter: 7/32"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (440 Series)
- Part No: 440-2188
Key Performance Features:
- 4-Flute square end design for smaller milling work
- Double-end body extends usable tool life
- 30° helix with precision-ground cutting edges
- Uncoated construction for standard shop applications
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
