Product Overview

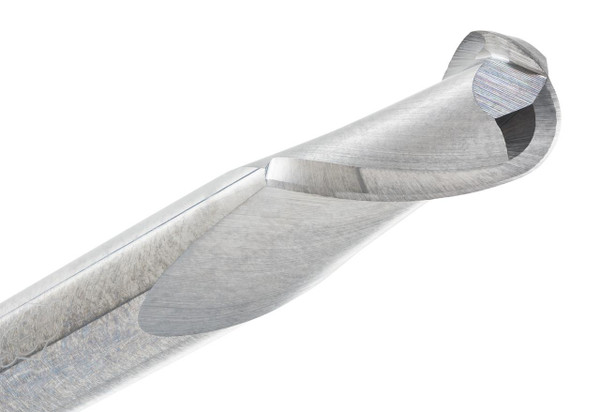

The CGS Tool 422-2188 is a 7/32" diameter 2-flute solid carbide ball end mill built specifically for compact profile work, with a double-end design that gives you a second usable cutting end once the first wears down. It belongs to the 422 Series, CGS Tool's double-end ball nose line.
What sets this tool apart is that practical economics again — the .1094" radius handles blending and curved detail cleanly, and running a 30° helix, this cutter delivers dependable general-purpose performance across mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 7/32"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1094"
- Series: CGS 422 Series
- Part No: 422-2188
Key Performance Features:
- 2-flute ball end design for profile and contour milling
- Double-end construction gives use from both cutting ends
- .1094" radius supports smooth rounded feature work
- 30° helix provides steady general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
