Product Overview

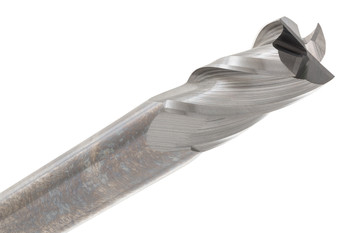

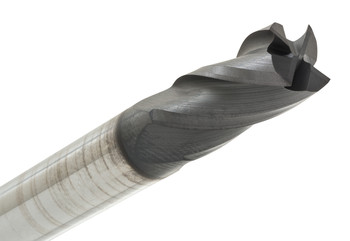

The CGS Tool 240-2188 is a 7/32" diameter 4-flute solid carbide square end mill built for general-purpose milling, a solid choice for slotting and side wall work in compact-to-mid-size CNC jobs.
With a 1/2" length of cut and 2" overall length, this 240 Series cutter gives controlled cutting performance, and the uncoated carbide construction makes it practical for everyday shop conditions.
Tool Specifications:
- Diameter: 7/32"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 240 Series
- Part No: 240-2188
Key Performance Features:
- General-purpose milling handled by a 4-flute square end design
- 7/32" diameter supports compact stock removal
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
