Product Overview

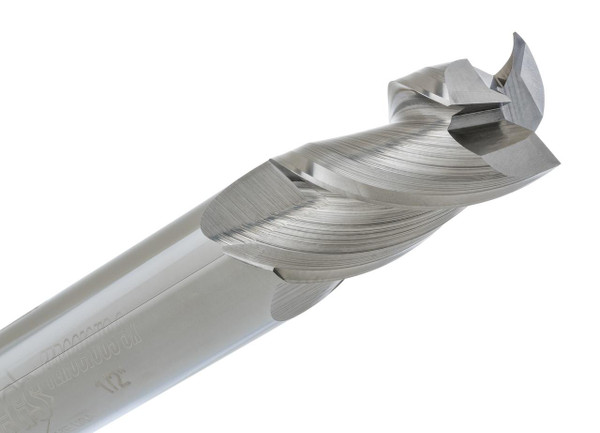

Aluminum shops, deals, always chasing that feed rate, they end up reaching for the CGS Tool 5303, which is a 3/16" diameter 3-flute square end mill from the Ferocious 3X Series made for fast, clean cutting in non ferrous materials. It feels like the variable helix with variable pitch keeps chatter and harmonics quiet even when you push the feeds higher. Plus, the uncoated carbide build rounds out the tool; it’s just the one that tends to fit aluminum, copper, brass, and other nonferrous stuff, also plastics and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: Variable Helix
- Series: CGS 5300 Ferocious 3X Series
- Part No: 5303
Key Performance Features:
- 3-flute Ferocious 3X design for high-performance non-ferrous milling
- Variable helix and variable pitch help reduce chatter and harmonics
- Square end profile supports clean slotting, profiling, and pocketing
- Solid carbide body provides rigidity at higher feed rates
- Uncoated finish suited for aluminum and non-ferrous cutting conditions
- Best suited for aluminum, copper, brass, non-ferrous materials, plastics, and composites
- Built for fast stock removal with improved surface quality
