Product Overview

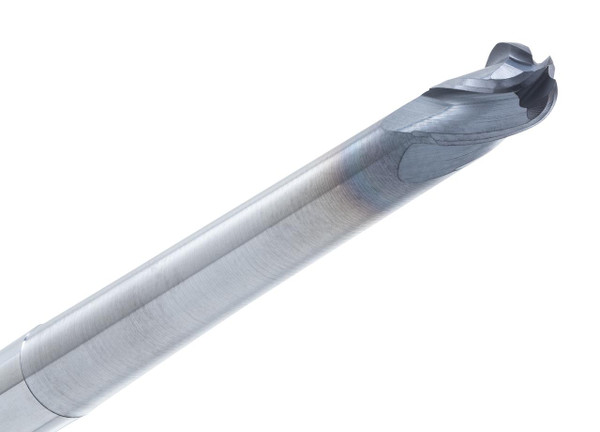

The CGS Tool 8005-ALTiN is a 1/4" diameter 4-flute solid carbide ball end mill from the 8000 Profile Series, sized for profile, deep pocket, and contour milling where a smaller ball end cutter needs extended reach. Its 6" overall length gives it that added distance.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .125" radius matched to its diameter, with an ALTiN coating that helps the cutter hold up better in hotter or more demanding cuts. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's good for deep pocket finishing.
Tool Specifications:
- Diameter: 1/4"
- Shank: 3/8"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 6"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .125"
- Series: CGS 8000 Profile Series
- Part No: 8005-ALTiN
Key Performance Features:
- 4-Flute ball end design for profile and contour milling
- Extended OAL matched to diameter gives extended reach
- ALTiN coating improves heat and wear resistance
- .125" radius creates smooth rounded finishes
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
