Product Overview

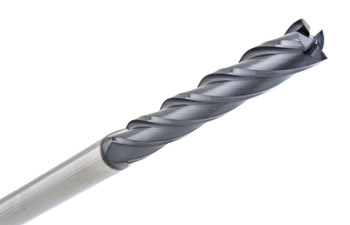

Long-reach milling with added heat resistance, that's the 840-7500-ALTiN at 3/4" diameter. This 4-flute square end mill carries a 3" length of cut and 6" overall length, built for deeper slots, extended profiles, and tall side walls that a shorter cutter can't reach properly.
ALTiN coating helps protect the cutting edge from heat and wear during more demanding cutting conditions, which matters more at this reach. With a 30° helix and single-end design, the 840-7500-ALTiN gives machinists a dependable option for clean square-end stock removal in mixed CNC materials.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 840 Series
- Part No: 840-7500-ALTiN
Key Performance Features:
- 4-flute square end built for long-reach milling
- 3" length of cut gives extended cutting depth
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth, general-purpose cutting
- Handles slotting, profiling, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
