Product Overview

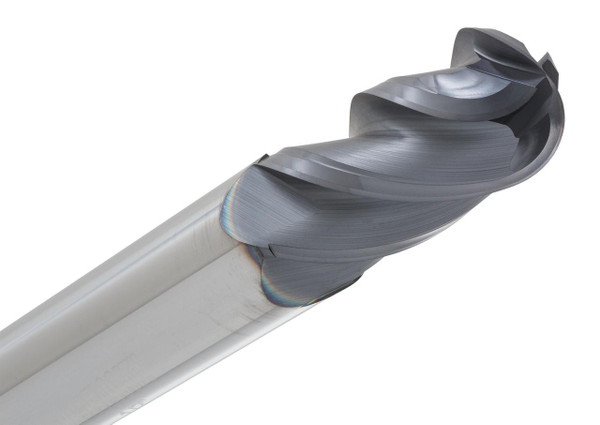

The CGS Tool HV142-1876 has a 3/16" diameter 4 flute solid carbide ball end mill, meant for pretty high-performance machining especially in steels and various alloys. It sits in the Hi-Velocity (HV) Series, and it is built to give that strong combo of power , speed, and precision which helps a lot with both roughing plus finishing work too.
Made from top grade micro-grain carbide, the HV142-1876 has a variable helix and variable index geometry, then it comes with an ALTiN coating, so it handles heat a lot better and lasts longer even when you run at high RPM. The free cutting setup supports improved surface finishes and chip evacuation, while it also reduces chatter and general wear, so machinists can push the feeds and speeds more without losing accuracy.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV142-1876
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
