Product Overview

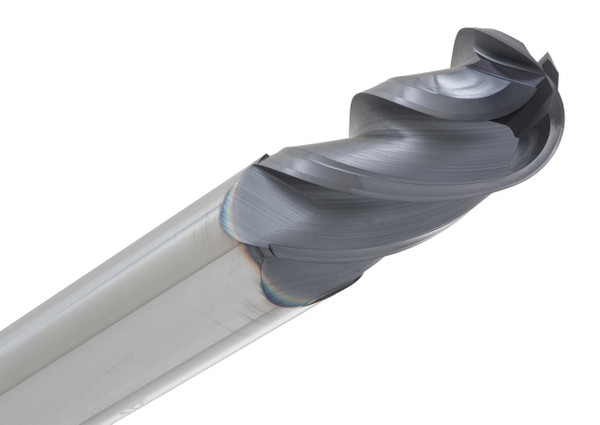

The CGS Tool HV142-5001 has a 1/2” diameter, 4-flute solid carbide ball end mill, and it’s built for high performance cutting in steels plus other alloys. This one comes from the Hi-Velocity (HV) Series, it’s meant to bring strength, faster speeds, and tight precision whether you’re doing roughing or finishing.
Made with premium micro-grain carbide, the HV142-5001 uses a variable helix, also a variable index style geometry, and on top of that it has an ALTiN coating. That combo helps with heat resistance and also extends tool life when the RPMs are high. The free-cutting layout helps with surface appearance and chip evacuation. It also reduces chatter and wear so machinists can crank up feeds and speeds more, without losing accuracy.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 4”
- Flutes: 4 - Ball End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV142-5001
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
