Product Overview

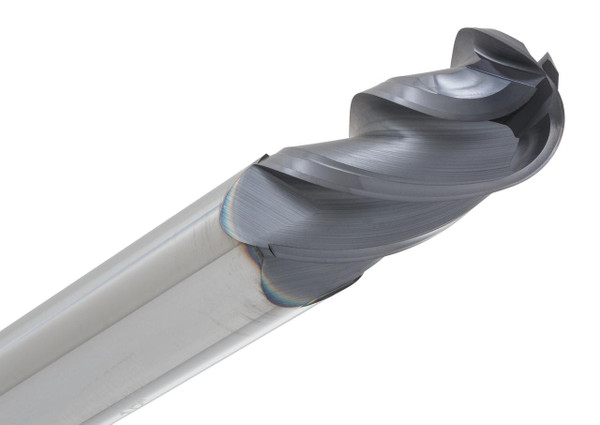

The CGS Tool HV142-7500 has a 3/4" diameter 4 flute solid carbide ball end mill that’s meant for high performance machining in steels and various alloys. It comes from the Hi-Velocity HV series so you get this kind of unmatched strength, speed and also precision, for roughing and for finishing work, depending on what you’re doing.
Made using premium micro-grain carbide, the HV142-7500 includes a variable helix, a variable index geometry, and yes an ALTiN coating too for better heat resistance and longer tool life even when you run high RPM. The free-cutting setup helps with surface quality and chip evacuation at the same time, while it also limits vibration and general wear, so machinists can push feeds and speeds higher without losing accuracy.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 - Ball End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV142-7500
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
