Product Overview

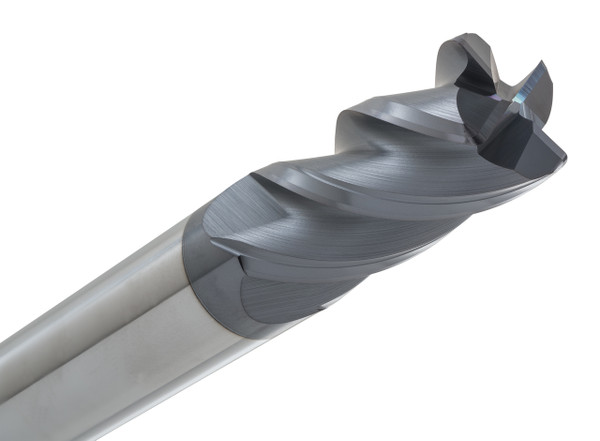

The CGS Tool HV143-4375 has a 7/16” diameter, 4 flute solid carbide corner radius mill, built for high-performance machining when you’re working in steels and various alloys. It comes out of the Hi-Velocity (HV) Series , so it tends to bring that kind of strength, speed and precision that you usually want for both roughing AND the finishing side of things.
Made from really premium micro-grain carbide, the HV143-4375 uses a variable helix, plus a variable index layout, and there’s an ALTiN coating included which helps a lot with heat resistance and long tool life especially when you’re running at high RPMs. The free-cutting style helps with surface appearance and chip removal, while at the same time it cuts down on vibration and wear, so machinists can push feeds and speeds further without losing accuracy.
Tool Specifications:
- Diameter: 7/16”
- Shank: 7/16”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-3/4”
- Flutes: 4 - Corner Radius
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV143-4375
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
