Product Overview

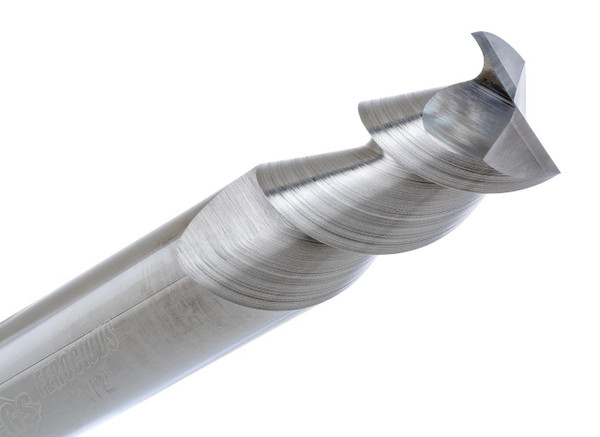

The CGS Tool M2166-UC, is a 25mm diameter 2 flute solid carbide square end mill . It’s built for high speed machining of aluminum, non ferrous metals, plastics and composite materials. It comes under the 2000 Series Ferocious line, and it gives pretty fierce results like rapid chip evacuation, strong material removal rates , and dependable machining stability for tough CNC milling jobs.
Made from premium solid carbide, the M2166-UC has CGS Tool’s own 55° high helix layout, set up to boost chip flow, lower cutting forces, and handle aggressive feed rates. The square end shape leads to tidy accurate cuts, so it works well for slotting , pocketing, profiling, contouring, and finishing. With a 38mm length of cut and a 100mm overall length, you get extra reach for deeper machining tasks, while keeping solid rigidity and cutting balance. The uncoated style is tuned for aluminum and other non ferrous materials, it promotes efficient chip evacuation and cleaner cutting behavior without worrying about coating buildup.
Tool Specifications:
- Diameter: 25mm
- Shank: 25mm
- Length of Cut (LOC): 38mm
- Overall Length (OAL): 100mm
- Flutes: 2 Flute
- End Style: Square End
- Radius: None
- Material: Solid Carbide
- Coating: Uncoated
- Helix Angle: 55°
- Series: 2000 Series Ferocious
- Part No: M2166-UC
Key Performance Features:
- 2-flute square end design provides efficient chip evacuation and precise cutting performance.
- Original 55° high helix geometry promotes smooth chip flow and reduced cutting forces.
- Uncoated cutting edges deliver clean machining performance in aluminum and non-ferrous materials.
- Optimized for high-speed milling applications requiring maximum chip clearance.
- Square end geometry produces sharp corners and accurate machining results.
- 38mm length of cut supports deep milling, profiling, and pocketing operations.
- 100mm overall length provides extended reach for complex machining applications.
