Product Overview

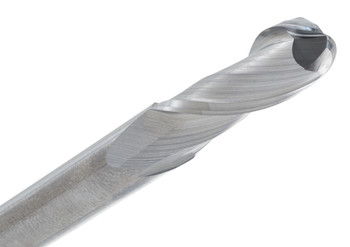

The CGS Tool 122-4062 is a 13/32" diameter 2-flute solid carbide ball end mill from the 122 Series, sized for general-purpose profile and contour milling just under the 1/2" mark. It's a practical fit whenever the part calls for a clean radius rather than a flat-bottom finish.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .2031" radius matched to its diameter for a steady, familiar cutting action. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's an everyday cutter for mixed material work.
Tool Specifications:
- Diameter: 13/32"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .2031"
- Series: CGS General Purpose (122 Series)
- Part No: 122-4062
Key Performance Features:
- 2-Flute ball end design for profile and contour work
- .2031" radius matched to diameter for smooth rounded cuts
- 30° helix with precision-ground cutting edges
- Uncoated construction for cost-effective general milling
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
