Product Overview

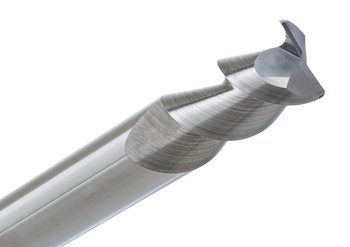

The CGS Tool 2000-S has a diameter of 9/64”, 2-flute solid carbide square end mill that’s made for maximum material removal, and also sharp surface precision especially in aluminum, non-ferrous materials, and plastics. The tool belongs to the Ferocious Series, which aims at machinists who want fast results, even when they push the feed rates to a more extreme phase.
The tool is made from premium sub micro grain carbide, the 2000-S has a 55° high helix that helps with better chip evacuation, fewer cutting forces, and really clean surface outcomes. Its polished cutting edges, plus a free-cutting geometry, work to reduce built-up edges, while still keeping an exceptional tool life. This stays true even with high speed CNC use, where consistency really matters.
Tool Specifications:
- Diameter: 9/64”
- Shank: 3/16”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2000-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
