Product Overview

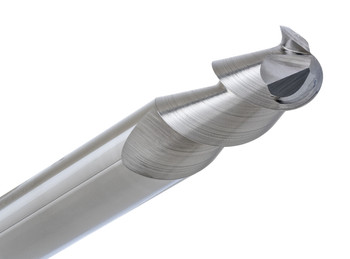

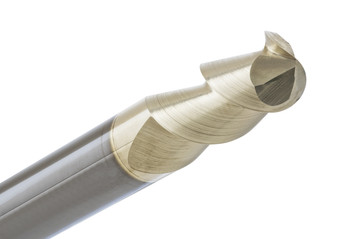

The CGS Tool 2036-S has a 1/2” diameter, 2-flute solid carbide square end mill. It is made for max material removal plus pretty fine surface precision especially in aluminum , non-ferrous metals , and plastics. It comes from the ferocious series, and it feels aimed at machinists who want high performance at these extreme feed rates.
It’s manufactured using premium sub-micro grain carbide, and the 2036-S has a 55° high helix thing for better chip evacuation, less cutting force, and really nice surface finishes. The polished cutting edges along with a free-cutting geometry help reduce built-up edge, but it still keeps a strong tool life, even when you’re running high-speed CNC applications.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 3-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2036-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials.
