Product Overview

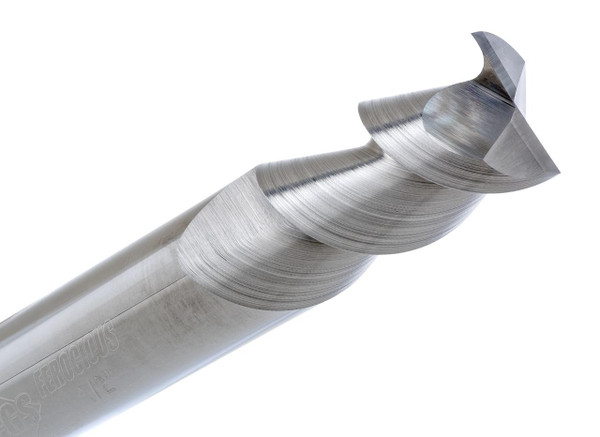

The CGS Tool 2057 has a 3/4” diameter, 2-flute solid carbide square end mill, made for ripping away a lot of material while still keeping surface precision tight on aluminum, non-ferrous metals, and plastics. It comes from the ferocious series, and it’s basically built for machinists who want high performance even when they run extreme feed rates, no hesitation.
Manufactured using premium sub-micro grain carbide, the 2057 shows a 55° high helix that helps with chip evacuation, lowers cutting forces, and delivers that outstanding surface finish thing. The polished cutting edges plus the free-cutting geometry keep built-up edges to a minimum and at the same time it holds up tool life very well, even with high-speed CNC setups.
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 4”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2057
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
