Product Overview

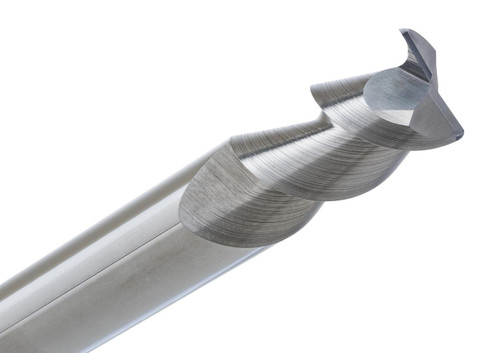

The CGS Tool 2067-S has a 1” diameter, 2 flute solid carbide square end mill, made for maximum material removal, and also that surface precision thing on aluminum and other non ferrous metals, plus plastics. It comes from the Ferocious Series, and yeah it’s meant for machinists who want high performance, even when the feed rates are kinda extreme.
Made with premium sub micro grain carbide, the 2067-S uses a 55° high helix so you get better chip evacuation, lower cutting forces, and those really sharp surface finishes. The polished cutting edges, and the free cutting geometry kinda team up to minimize built up edges, but still keep an excellent tool life going, even when you run high speed CNC setups.
Tool Specifications:
- Diameter: 1”
- Shank: 1”
- Length of Cut (LOC): 2-1/2”
- Overall Length (OAL): 5”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2067-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
