Product Overview

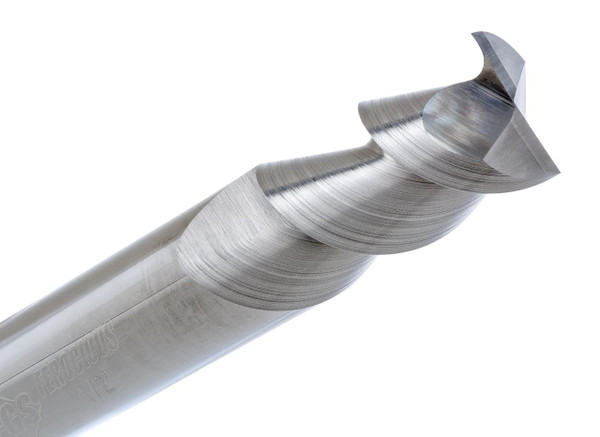

The CGS Tool 2067 has a 1” diameter, 2-flute solid carbide square end mill. It is made to push maximum material removal plus strong surface precision, in aluminum, non ferrous metals, and plastics. Coming from the ferocious series, it’s made for machinists who want high performance, even at extreme feed rates.
Built from premium sub micro grain carbide, the 2067 includes a 55° high helix that helps with chip evacuation, keeps cutting forces lower, and gives a really clean finish. The polished cutting edges and free cutting geometry also help reduce built up edges, while still holding up a great tool life, even during high speed CNC work.
Tool Specifications:
- Diameter: 1”
- Shank: 1”
- Length of Cut (LOC): 2-1/2”
- Overall Length (OAL): 5”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2067
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
