Product Overview

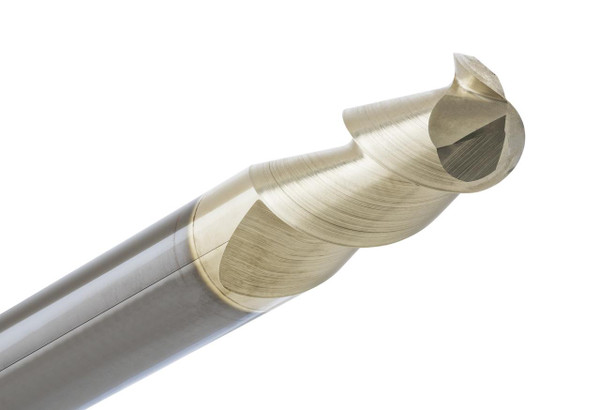

The CGS Tool BN2060-S comes in a of 3/4” diameter 2-flute solid carbide ball end mill , made for high speed machining in aluminum, non ferrous metals , plastics, and composites. It’s part of the BN2000 Series “Ferocious” and well, it tends to bring pretty exceptional material removal rates, smoother surface finishes, and steady results even when the CNC milling task gets rough.
Built from premium solid carbide, the BN2060-S has CGS Tool’s own 55° high helix geometry, which helps with chip evacuation and lowers cutting forces, kinda quietly but effectively. The precision ground ball end shape is great for contouring, profiling and even 3D surface work , while the ZrN coating works to limit built-up edge and stretch tool life in aluminum and other non ferrous materials. The optimized geometry supports pushier feed rates, so machining efficiency improves, and you get that dependable cadence you usually want.
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 2-1/2”
- Overall Length (OAL): 5”
- Flutes: 2 - Ball End
- Radius: .375”
- Material: Solid Carbide
- Coating: ZrN
- Series: BN2000 Series Ferocious
- Part No: BN2060-S
Key Performance Features:
- 2-Flute ball end design for contouring and profiling applications
- Original 55° high helix geometry for superior chip evacuation
- ZrN coating helps reduce material buildup and improve tool life
- Supports high chip loads and aggressive feed rates
- Excellent surface finish in aluminum and non-ferrous materials
- Ideal for 3D machining, finishing, and sculptured surfaces
- Delivers reliable performance in plastics and composite materials
- Engineered for high-speed CNC milling and efficient material removal
